Description
CONSTRUCTION SPECIFICATIONS
– Filter-screen with internal / external functioning; – hot-galvanized steel; – aluminum cover; – polyester filter mesh ; – stainless steel AISI304 supporting cartridge.
STANDARD EQUIPMENT
– flanged connections; – 150 mesh filter mesh; – drain tap; – 2 pressure gauges; – manual of use and maintenance.
CE RULES – The FILTROLINE is designed and constructed in accordance with the EU directive “Pressure Equipment Directive 97/23” and it is marked by individual identification labeling.
AVAILABLE SETTINGS:
Model | Flow | Flanges | MSP | Nets (*) | Weight | ||||
lt/sec | lt/min | mc/h | DN | PN | bar | mesh | mm | kg | |
ACX26005 | 10 | 600 | 36 | 80 | 10 | 10 | 150 | 0,1 | 18 |
ACX26008 | 20 | 1200 | 72 | 100 | 10 | 10 | 150 | 0,1 | 22 |
ACX26011 | 30 | 1800 | 108 | 125 | 10 | 10 | 150 | 0,1 | 27 |
ACX26014 | 50 | 3000 | 180 | 150 | 10 | 10 | 150 | 0,1 | 39 |
MSP = max service pressure allowed
(*) other filtering nets available.
More technical information available in the documents attached.

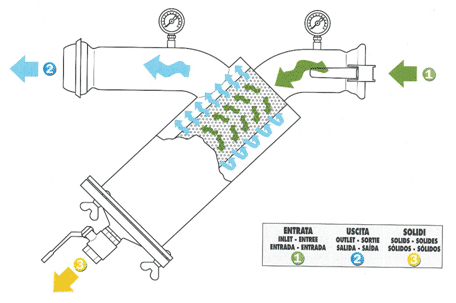

OPERATION SCHEME:
